Change of command in VyOS with FRR

Based on this VyOS knowledge base article , restarting the routing daemons, like OSPF, would be as easy as typing "restart ospf". But while working on a VyOS 1.3 appliance in GNS3, I couldn't simply do that : it turns out that VyOS now uses FRRouting, and this implies a new command syntax.

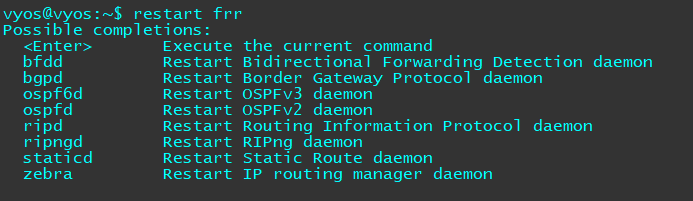

The correct command to restart ospfd for example is now : "restart frr ospf". The same thing applies for other routing protocols.
